Fuzz testing for connected and autonomous vehicles

Apr 27, 2023 / 4 min read

Table of Contents

Identifying high-risk interfaces and determining the level of fuzzing
Autonomous vehicles and 5G
Conclusion

The previous blog post in this series presented an introduction to secure software development for modern vehicles. In this blog post, we will do a deep dive on connected and autonomous vehicles (AVs) and focus on fuzz testing.

Identifying high-risk interfaces and determining the level of fuzzing

There are two important topics to consider when doing fuzz testing. First, the tester needs to identify high-risk interfaces to target. Second, they have to determine the level of fuzzing to perform. Threat analysis and risk assessment (TARA) is one approach that can be used to identify the high-risk interfaces, as defined in Clause 15 of ISO/SAE 21434. Additionally, cybersecurity assurance levels (CALs), as described in Annex E of ISO/SAE 21434, can be used to help determine the level of fuzzing required to achieve a certain level of cybersecurity assurance.

Let's use a simplified example of a connected vehicle ecosystem, illustrated in Figure 1, to perform this analysis.

Autonomous Vehicle Undergoing Fuzz Testing for Security Enhancement

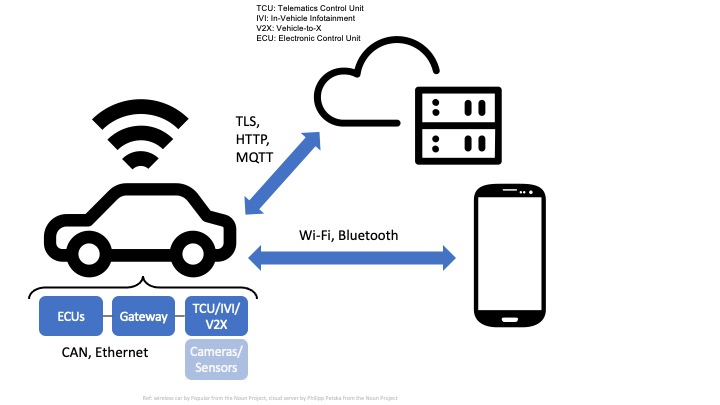

Figure 1: Overview of connected vehicle ecosystem

In this example, we have a connected vehicle with an in-vehicle network using controller area network (CAN) and Ethernet. The vehicle communicates with OEM back ends and cloud services using network protocols such as TLS, HTTP, and MQTT. Moreover, the vehicle can communicate with a user device over Wi-Fi or Bluetooth.

By performing a TARA, it is possible to identify threats that use these interfaces and protocols as attack paths, and determine their impact. Additionally, using an attack vector–based approach with the respective impact values shown in Figure 2, CALs for the different interfaces and protocols can be determined, as summarized in Figure 3.

Figure 2: Attack vector–based approach

Autonomous Vehicle Fuzz Testing for High-Risk Interfaces Security

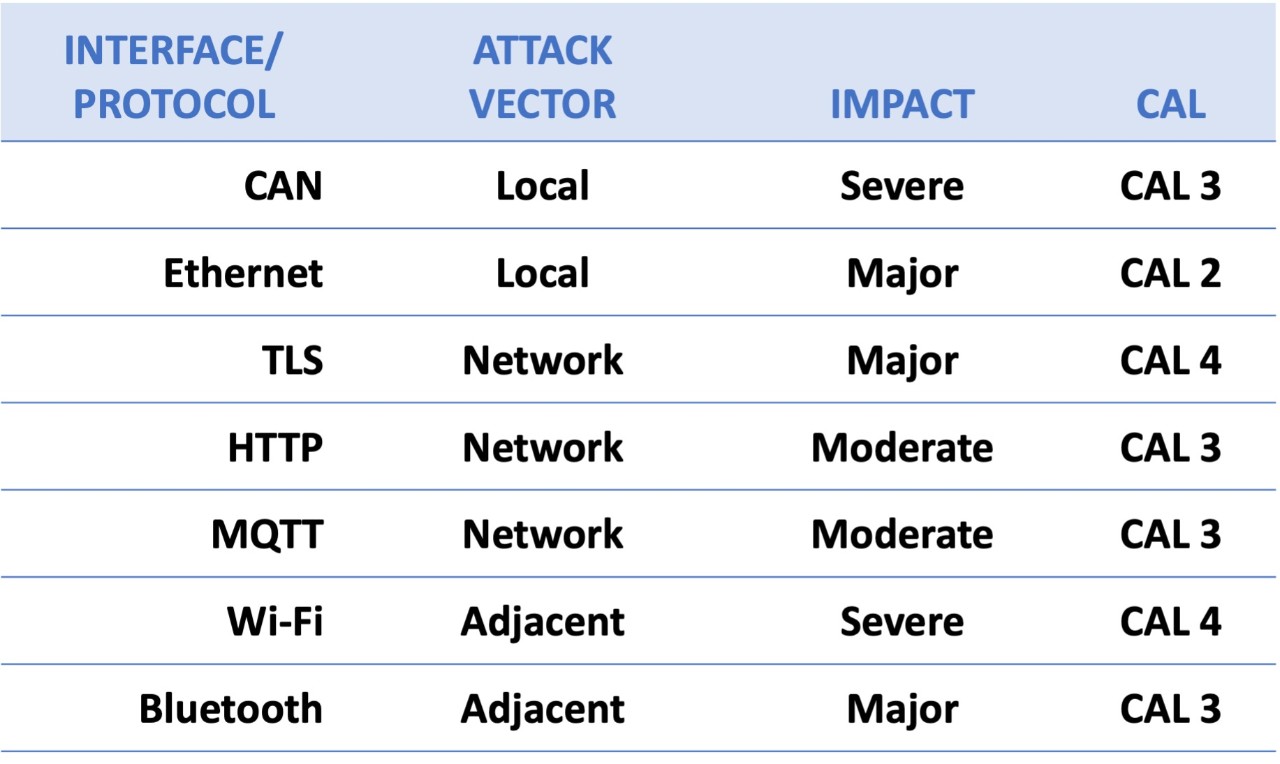

Figure 3: High-risk interfaces and protocols identified with their respective CALs

Using the CALs, testers can define quantitative and qualitative metrics to help determine the level of fuzzing required to achieve a certain level of cybersecurity assurance. An example is presented in Figure 4.

Autonomous Vehicle Fuzz Testing Metrics Diagram for Software Security

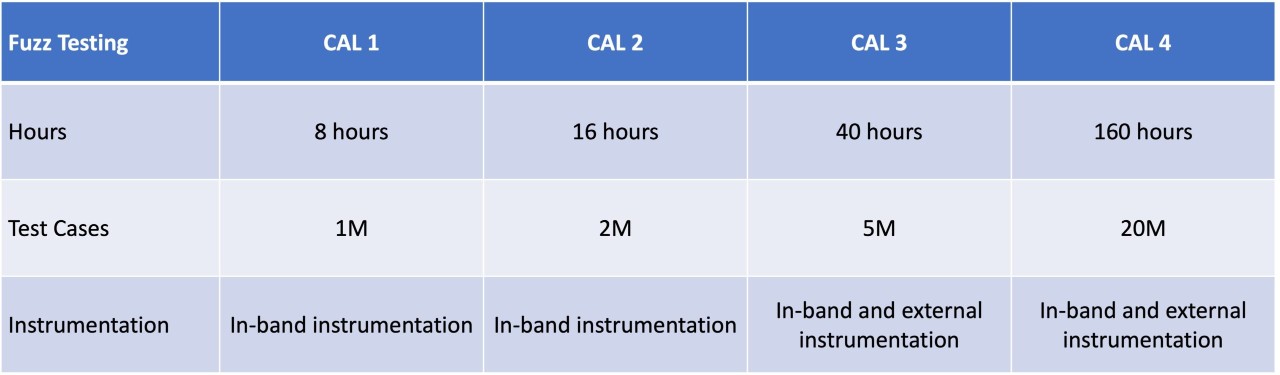

Figure 4: Quantitative and qualitative metrics for fuzz testing for respective CALs

For example, for CAL 1, which is the lowest level of cybersecurity assurance, quantitative metrics testers can define 8 hours of fuzzing or 1 million fuzz test cases. For qualitative metrics, testers can define that only in-band instrumentation is required. On the other hand, for CAL 4, which is the highest level of cybersecurity assurance, quantitative metrics testers can define 160 hours of fuzzing or 20 million fuzz test cases. For qualitative metrics, testers can define that both in-band and external instrumentation are required. (Please note that these are just examples and actual metrics would need to be defined appropriately based on the target system and its risks.)

Autonomous vehicles and 5G

Let’s also consider the autonomous driving use case. There are numerous cameras and sensors on the vehicle that can be considered target interfaces, but in this blog post we will focus on how 5G supports autonomous driving. For example, 5GAA is a consortium of auto manufacturers and telecom companies focused on developing end-to-end solutions for future mobility and transportation services, and as such it supports a number of use cases for vehicle-to-everything communication (V2X) and autonomous driving. Some example use cases defined by 5GAA include HD map sharing for AVs, automated valet parking, sensor sharing for Avs, and tele-operated driving. Thus, the 5G network and its infrastructure will play a major role in supporting the autonomous driving use cases defined by 5GAA.

Figure 5 gives a simplified overview of the 5G network ecosystem. On the left is the user equipment that in this case consists of connected and autonomous vehicles. These vehicles may connect to 5G base stations (gNodeB) where available, and as a fallback, connect to 4G base stations (eNodeB), as shown in the middle of the figure. Additionally, there is communication between 4G base stations and 5G base stations as well as communication between 5G base stations. The 5G base stations are also connected to a 5G core network, as shown on the right side of the figure. There is also various network communications within the 5G base stations, as well as within the 5G core network.

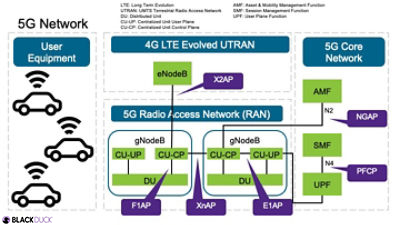

Figure 5: Overview of 5G network used for connected and autonomous vehicles

For the 5G network ecosystem, rather than focusing on the vehicles as targets, we want to highlight the importance of a secure and robust 5G network. Therefore, the overview in Figure 5 also shows how it is possible to perform fuzz testing of the various protocols used in the communication between 5G base stations, between 4G and 5G base stations, between 5G base stations and the 5G Core Network, and within the 5G core network and the 5G base stations. Examples of protocols that can be fuzzed include X2AP, F1AP, XnAP, E1AP, NGAP, and PFCP.

Conclusion

When fuzz testing connected and autonomous vehicles, it is important to first recognize the associated risks with different interfaces and communication protocols for the target systems. A TARA can be performed to help identify high-risk interfaces. Furthermore, CALs can be used to help define the appropriate level of testing to achieve a certain level of cybersecurity assurance.
